FiiO K11 R2R vs K13 R2R: Which R2R DAC/Amp Should You Buy?

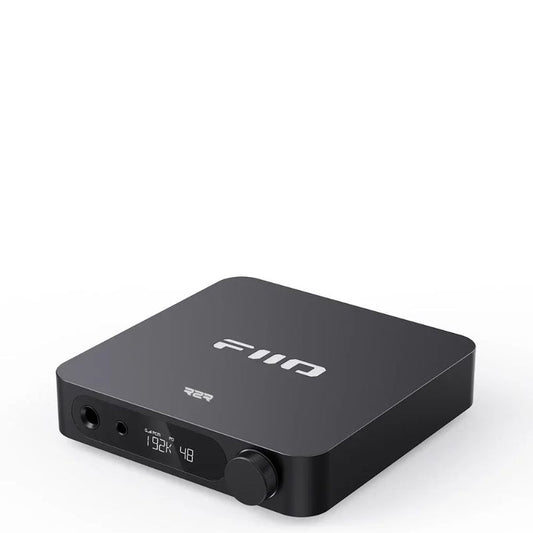

The FiiO K11 R2R and FiiO K13 R2R share their core: FiiO's own four-channel, fully differential 24-bit R2R (resistor-ladder) DAC built from 192 thin-film resistors, NOS/OS modes, three gain levels, and 6.35mm plus 4.4mm headphone jacks. The K13 R2R is the bigger, better-connected box. The HIFIMAN EF400 ($247.99) is the third R2R desk unit compared here: the pick for 4-pin XLR headphone cables or the most rated power, but USB is its only input.

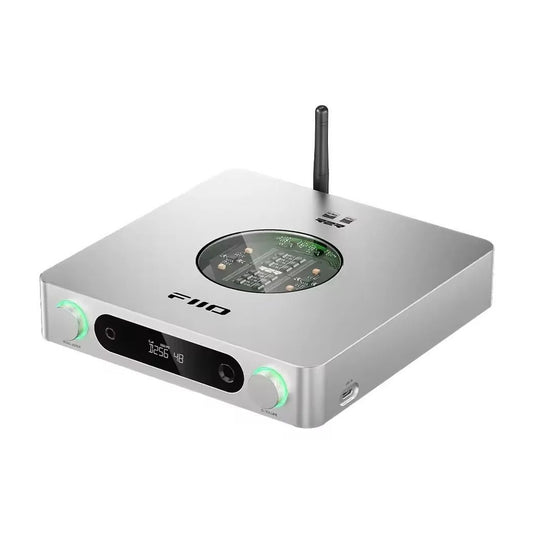

What does the FiiO K13 R2R add over the K11 R2R?

For $128 more, the K13 R2R adds:

• More power: 2400mW per channel balanced and 1220mW single-ended into 32Ω, against 1300mW and 460mW for the K11 R2R.
• Bluetooth 5.4 with LDAC, AAC and SBC (music only, no calls). The K11 R2R has none; its inputs are USB-C, optical and coaxial.
• A 10-band parametric EQ, set in the FiiO Control app or FiiO's web tool.
• Balanced XLR line outputs beside the RCA outputs. Both FiiOs run their rear outputs as PRE (volume-controlled) or LO (fixed at maximum); only the K13 R2R adds XLR.
• A second USB-C input on the side, which takes priority if both are connected.
• An internal 30W AC supply plus a 12V DC input, chosen with a switch. The K11 R2R uses an external 12V adapter.
• An infrared remote for input, volume, EQ and output.
• Higher-rate optical: up to 192kHz/24-bit, versus 96kHz/24-bit on the K11 R2R.

One thing it drops: the K11 R2R's coaxial digital output. It is also bigger: about 980g and 210 × 188 × 42mm, versus 420g and 147 × 133 × 32.3mm.

How do the K11 R2R, K13 R2R and HIFIMAN EF400 compare on specs?

Manufacturer specifications and current TonePier prices.

FiiO rates power at under 1% THD+N. HIFIMAN states no load for the EF400's 4.4W, but also rates its balanced amp at 10.7Vrms into 36Ω at under 1% THD, about 3.2W; reviewer GoldenSound measured roughly 3W into 32Ω. THD+N test conditions differ, so compare those loosely.

Is an R2R DAC actually better than a regular delta-sigma DAC?

Not by measurement. Most DACs use delta-sigma chips, which oversample and modulate the signal to a very high rate at a low bit depth; an R2R DAC converts each PCM sample directly through a ladder of precision resistors. GoldenSound's EF400 review notes that R2R designs typically, though not always, measure worse. FiiO's own ratings show it: about 0.025% THD+N for the K11 R2R and 0.0173% for the K13 R2R, against under 0.0004% (4.4mm output, desktop mode) for its ESS-based KA17 dongle.

People buy R2R for the sound. Headfonics' reviews of both FiiOs describe a warm, relaxed presentation that gives up some micro-detail next to more neutral sources; the K11 R2R review also found busy, poorly mastered tracks could turn shrill. Treat R2R as a flavor choice, not an accuracy upgrade.

What do the NOS and OS modes do?

NOS (non-oversampling) feeds the R2R ladder at the file's original sample rate, with no oversampling filter. OS (oversampling) upsamples PCM to 384kHz first on the FiiOs. DSD is handled differently: the K11 R2R converts it to PCM internally, while the K13 R2R decodes it natively with OS disabled. FiiO publishes its performance figures in OS mode. In Headfonics' listening, NOS sounded warmer, with softer treble and slightly less resolution; OS sounded clearer, with more treble energy. The FiiOs set it in the menu (SAM); the EF400 combines it with gain on a four-position front switch: High Gain NOS, High Gain OS, Low Gain OS and Low Gain NOS.

Can the FiiO K11 R2R, K13 R2R and HIFIMAN EF400 drive planar headphones?

Yes, all three have power to spare at 32Ω. For a planar rated at 91dB/mW, 100mW already reaches 111dB peaks (our HE400se amp guide shows the math), and the K11 R2R's 4.4mm output is rated at 1300mW per channel. The K13 R2R and EF400 add headroom for the least sensitive models. Use the balanced output, which mainly buys power (see our balanced 4.4mm guide), and raise gain only if you run out of volume. On the EF400, HIFIMAN points low-sensitivity headphones to the 6.35mm and 4-pin XLR jacks.

Which is better for sensitive IEMs: K11 R2R, K13 R2R or EF400?

Between the FiiO K11 R2R and K13 R2R it is close; the K13 R2R's PEQ is the tiebreaker. Both have three gain levels with independent volume curves, and FiiO rates both 6.35mm outputs below 1Ω output impedance with noise floors in single-digit microvolts. Start on low gain with the 6.35mm jack.

The EF400 is the weakest IEM match. HIFIMAN designates its 3.5mm and 4.4mm jacks for sensitive IEMs on low gain, but reviewer GoldenSound measured about 9.8Ω output impedance on its balanced headphone output and up to about 1dB of channel imbalance from its analog volume control. If IEMs are all you use, a dongle such as the FiiO KA17 ($146.99) makes more sense than any desk unit here.

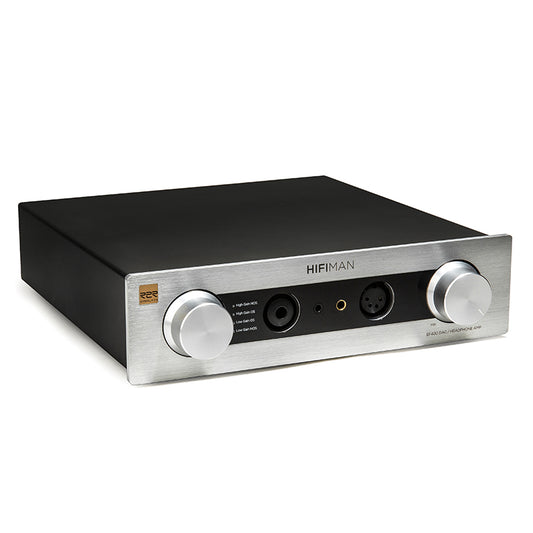

Where does the HIFIMAN EF400 fit in?

The HIFIMAN EF400 ($247.99) sits between the FiiOs on price and above both on rated power. It uses HIFIMAN's own Himalaya R2R module and has the most headphone jacks here: 6.35mm, 3.5mm, 4.4mm and 4-pin XLR, plus XLR and RCA line outputs. Choose it for a 4-pin XLR headphone cable or maximum headroom for hungry planars. Trade-offs: USB-B or USB-C is the only input, so no TV or console over optical; there is no Bluetooth or EQ; gain is just high or low; and it weighs 3.08kg at 246.5 × 228 × 61mm.

Should you buy the K11 R2R, K13 R2R or EF400?

• Buy the FiiO K11 R2R ($169.99, Black) if your source is a computer, TV or console, you listen wired, and you want R2R sound without paying for wireless or XLR.
• Buy the FiiO K13 R2R ($297.99, Black) if you will stream from a phone over LDAC, want PEQ, feed XLR active monitors through the preamp output, like a remote, or need the extra power.
• Buy the HIFIMAN EF400 ($247.99) if you use a 4-pin XLR headphone cable or want maximum headroom, and everything you play from connects over USB (computer, phone or tablet).
• Pair any of them with the FiiO FT1 ($152.99), a closed-back 32Ω headphone rated at 98dB/mW that comes with 3.5mm and 4.4mm cables. At 98dB/mW, 10mW already gives 108dB, so low gain is usually plenty.

Setting one up? Our desktop DAC/amp setup guide covers Windows, Mac and PS5. On Windows, FiiO's quick-start guides for both the K11 R2R and K13 R2R say to install FiiO's USB driver; macOS needs none. You can also browse the full FiiO range.

Who should skip the K11 R2R, K13 R2R and EF400?

• IEM-only listeners. All three are overkill; a dongle DAC covers IEMs from a phone or laptop.
• Measurement-first buyers. A delta-sigma desktop DAC/amp typically measures lower distortion than any R2R unit here.
• Anyone who needs portability. None has a battery; all three need wall power.
• EF400 shoppers with a TV or console. It has no optical, coaxial or Bluetooth input; pick a FiiO instead.
