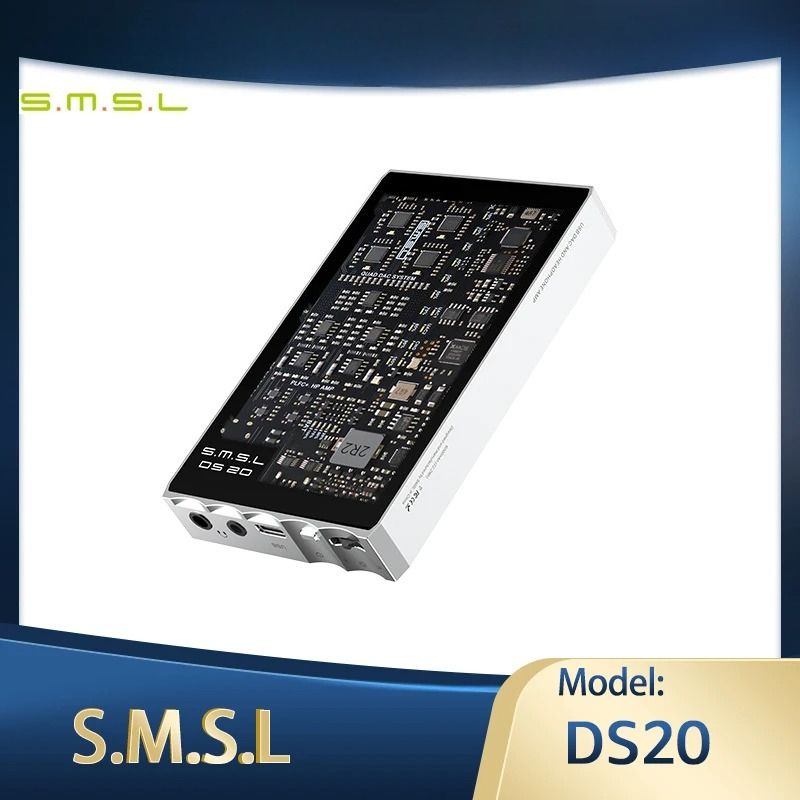

The SMSL DS20 is a portable USB DAC and headphone amp that runs four Cirrus Logic CS43131 chips from a built-in 6000mAh battery; SMSL rates it at 500mW per channel into 32Ω, with 3.5mm and 4.4mm balanced outputs. It suits IEM and headphone listeners who move between a phone, a laptop and a PS5 or Switch.
Who the SMSL DS20 is for

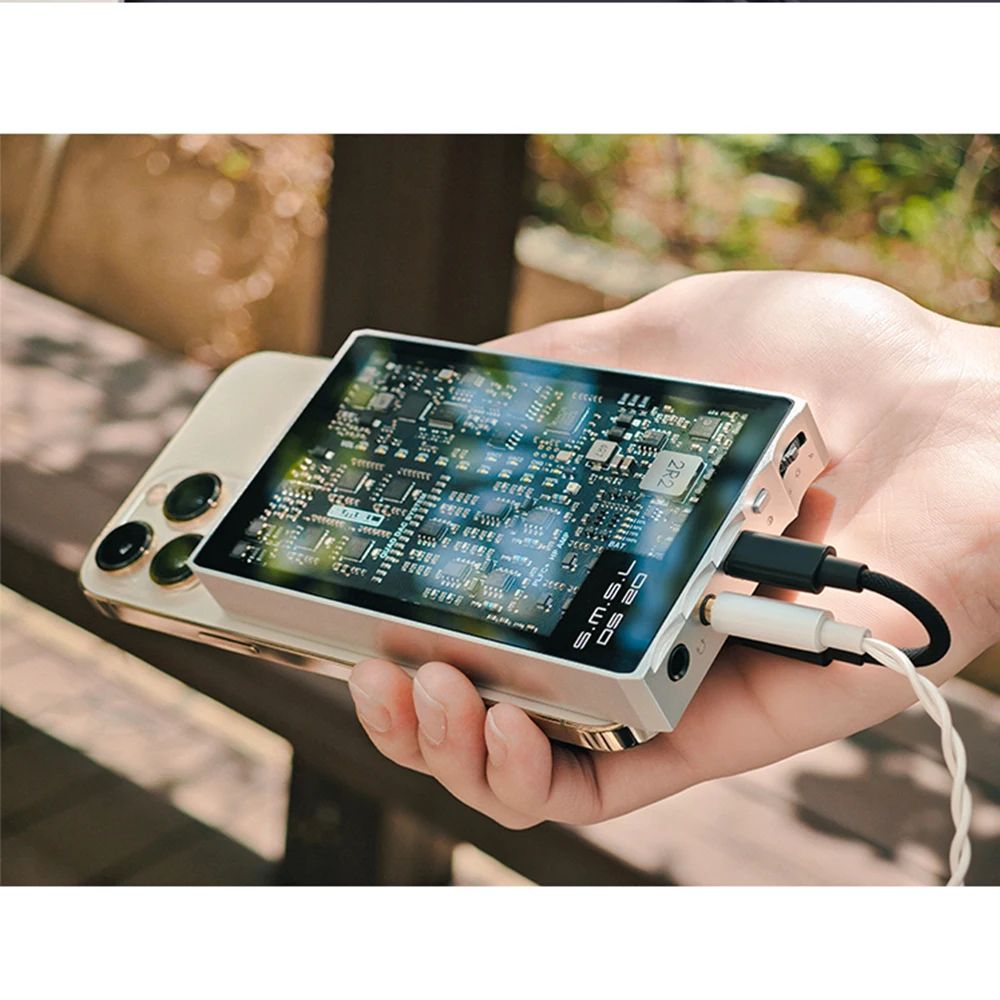

Wired listening on the move: It runs from its own 6000mAh battery, and SMSL rates it at 500mW per channel into 32Ω and 120mW into 300Ω.

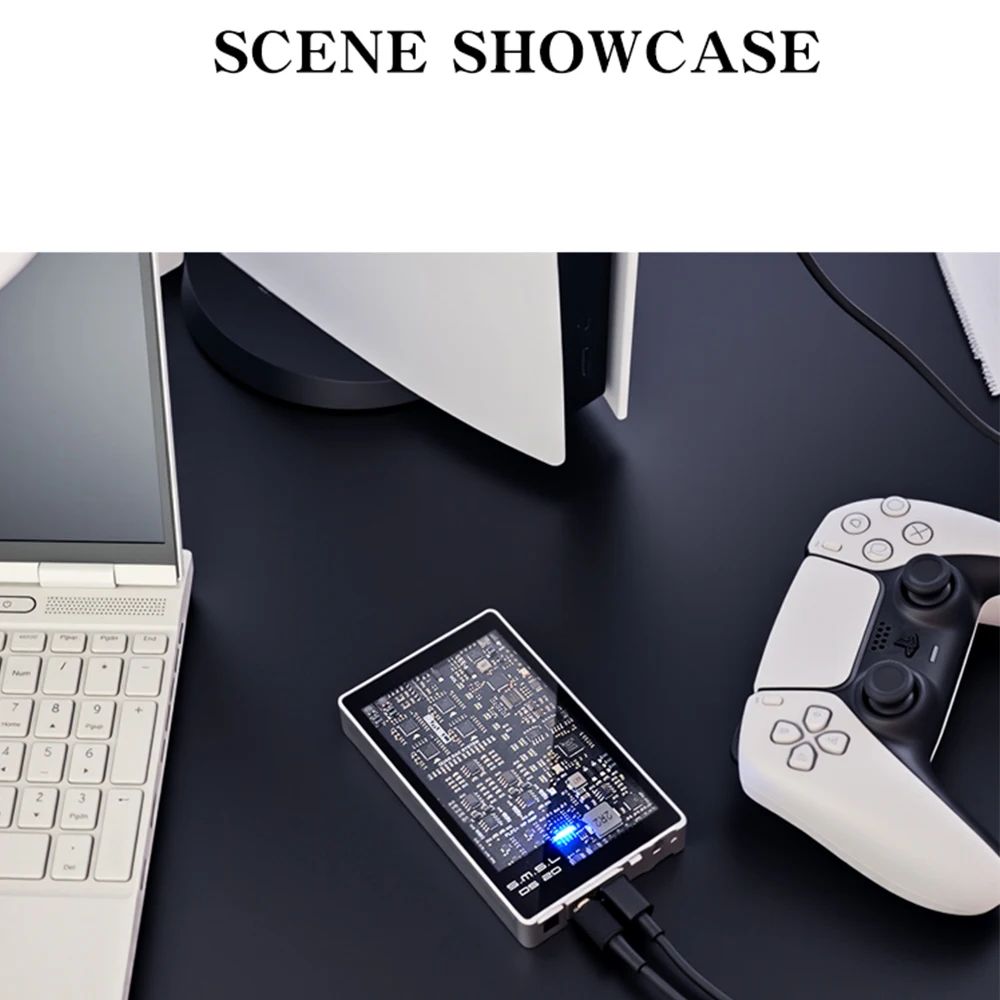

PS4, PS5 and Switch players: A driver-free USB 1.1 (UAC1) mode connects to game consoles; playback is capped at 16-bit/96kHz in that mode.
Balanced IEM and headphone cables: The 4.4mm balanced jack swings 6Vrms against 3Vrms from the 3.5mm jack, both with output impedance close to 0Ω.
A work laptop: Leave it on a laptop for one good listening chain without a desktop stack; UAC2 mode reaches 768kHz/32-bit, DSD256 and full MQA decoding, and Windows needs a driver in that mode.
Skip it if: you want Bluetooth or a light stick-style dongle: the DS20 connects over USB only, weighs 275 g and charges only in standby.
SMSL DS20 key specs

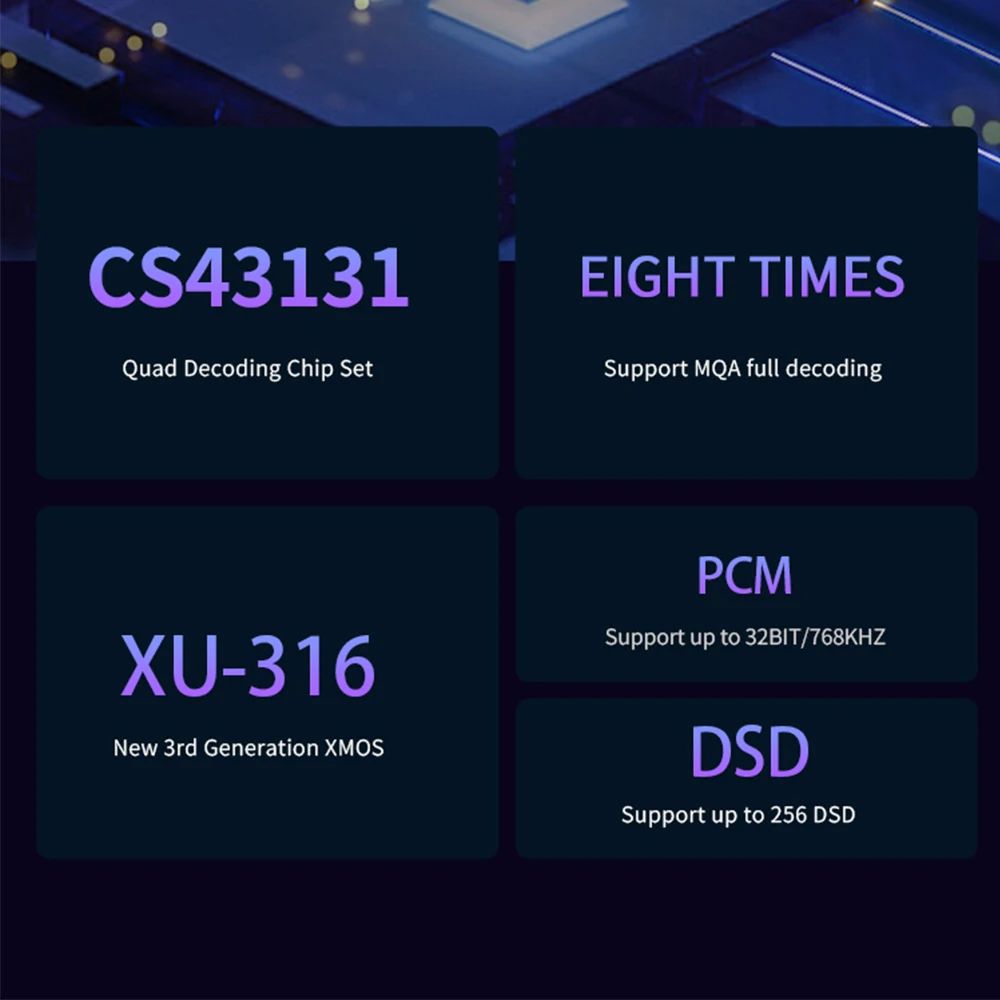

DAC chips: 4 × Cirrus Logic CS43131
USB interface: XMOS XU-316; UAC2 (USB 2.0) and UAC1 (USB 1.1) modes
Formats: PCM up to 768kHz/32-bit, DSD256, full MQA decoding (8x unfold); UAC1 mode up to 16-bit/96kHz
Outputs: 3.5mm (3Vrms) and 4.4mm balanced (6Vrms); output impedance near 0Ω
Dynamic range and SNR: 126dB (3.5mm and 4.4mm); THD+N 0.0002% @300Ω
Battery: 3.7V 6000mAh (22.2Wh); USB charging at 5V/3A, 9V/2A or 12V/1.5A, in standby only
Works with: Windows 7–11 (UAC2 needs a driver), macOS, Linux, Android, iOS, PS4, PS5, Nintendo Switch
Size and weight: 71 × 17 × 118.5mm; 275g
Genuine SMSL stock, 45-day returns.
SMSL DS20 vs similar options
vs FiiO KA17: A 33.5 g USB-C dongle normally powered by its host; its 650mW @32Ω balanced rating needs Desktop Mode and enough USB power (300mW otherwise). Choose the DS20 to run from its own 6000mAh battery.
vs FiiO BTR17: Adds Bluetooth 5.4 with LDAC and aptX Lossless in a 73.4 g body, but is rated 300mW @32Ω balanced outside Desktop Mode; choose the DS20 for wired listening at SMSL's 500mW @32Ω rating.
Yes. Every unit we sell is genuine and brand-new, shipped in its original packaging, and backed by our 1-year TonePier warranty and 45-day returns.
Where does my order ship from, and how long does it take?
Every order ships from our warehouse in China, with full tracking, and most orders ship within 3 business days. Shipping is free on every order; most US orders arrive within 7–15 business days and most orders to other countries within 7–20 business days — see our shipping policy for details.
What if it isn't for me?
You get 45 days to decide. Keep the packaging, keep it in like-new condition, and send it back for a refund. Ear tips unsealed for hygiene reasons are fine — we expect you to actually listen.
